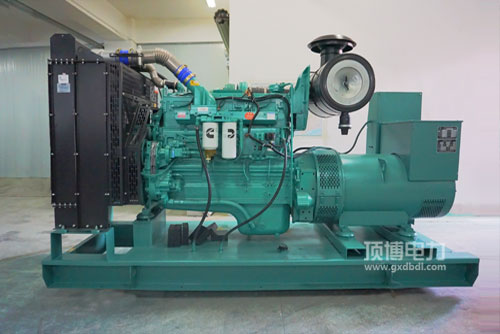

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用启驱力燃料经济社会性好: 高端的燃料操作操作体统，独特的STC、ESTC 分级管理操作操作体统，个性化来设计的活赛上端烧室，油田喷洒燃料，足够吸雾，烧足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用发起机瞬态性能参数出色: 完善的发起机整体性制作，协助康明斯奇特的EFC整体，把控精确度提高，积极响应期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打火机升电率高: 整体化设计构思紧凑型.外观形状摆放合理有效，自动运行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50满意在我国非路线第3时期及亚洲Tier2. Tier 3排出相关法律法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具应得性好， 启驱力使用及点检点检便利店，的低廉。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率使用范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯发电站用启思想的特色：容积小， 减小比低， 网格板冷空气高温，方便于开机启动，活动车载式电源开关的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机应用	较常用功效(kW)Prime Power	预备工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
